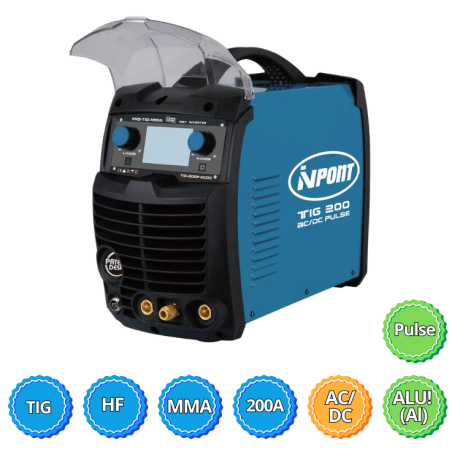

IVPONT TIG 200 AC/DC Pulse Welding Machine
HUF 453,327
HUF 412,115
Save HUF 41,212
VAT included
Delivery in 3-4 business days
AWI TIG 200 A AC/DC Welding Inverter, can be used with a generator, HF ignition, VRD function!
Reliable and easy to use, even in industrial environments! Suitable for ALUMINUM welding!
The promotion is valid until withdrawn or while stocks last.
The images are for illustration purposes only.
Data Safety policy
We handle your data confidentially and store it securely!
Delivery Policy
The delivery is carried out by a third party, so the charges may vary.
Warranty policy
Our company provides a warranty for most of our products. For more information, click here!
Welding Modes:
- AWI: HF ignition high-frequency arc ignition AC/DC
- MMA: Arc welding function, suitable for rutile, basic, stainless steel, overlay, and aluminum welding.
Functions:
- AC/DC Function: Perfect for aluminum welding.
- Pulse Adjustment: In AC mode – for aluminum, in DC mode – for steel and stainless materials.
- Synergic Adjustment
- Start Current – End Current Adjustment
- Adjustable Balance
- Adjustable Pulse Function
- Adjustable Frequency (Hz)
- Memory Adjustment Option
- 2/4 Stroke Adjustment
- Reset – Clear Function
- VRD Function: No-load voltage reduction function for protection in hazardous environments (e.g., damp or humid conditions).
- ARC Force Function: Automatically supports the best welding arc.
- HOT START Function: Adds automatic voltage when striking the arc for instant ignition.
- Anti-Stick Function: The welder detects electrode sticking and prevents it by immediately reducing the voltage.
Features:
- LCD Display
- Potentiometer Adjustment
- Save Settings
- IGBT Technology
- Air Cooling
- 60% Duty Cycle
- Can be used with a generator
- Can be used with an extension cord for distances of several tens of meters
Accessories:
- 4-meter AWI work cable
- Ground cable
- Electrical work clamp
Warranty: 12 months
10 Items
Data sheet
- Efficiency (%)
- 85 %
- Safety class
- IP 21S
- Dimensions (mm)
- 475 x 185 x 325 mm
- Net weight (KG)
- 10 kg
- Rated input power - TIG
- 8,2 kVA
- Rated input power - MMA
- 9,6 kVA
- Recommended network fuse
- 20 A (lomha)
- Welding current - MMA
- 10 – 200 A
- Welding current - TIG
- 10 – 200 A
- Duty cycle 40℃- 30%
- 200 A
- Duty cycle 40℃ - 60%
- 145 A
- Duty cycle 40℃ - 100%
- 115 A
- Open-circuit voltage
- 78 V
- Starting current
- 10 – 200 A
- Base current
- 10 – 200 A
- Current downslope time
- 0 – 5 sec.
- Gas pre-flow time
- 0,1 – 1 sec.
- Gas post-flow time
- 0,1 – 10 sec.
- Pulse frequency
- 10 – 100 Hz
- Power factor
- 0,7 cosφ
- Arc ignition mode
- HF, Lift TIG
- Control
- 2T, 4T, Foot Pedal (optional)
- Weldable electrode diameter
- 1,6 - 2,0 - 2,5 - 3,2 mm
- Cooling type
- Air-cooled (Ventillator)
