Migatronic Zeta 100 Plasma Cutter Welder

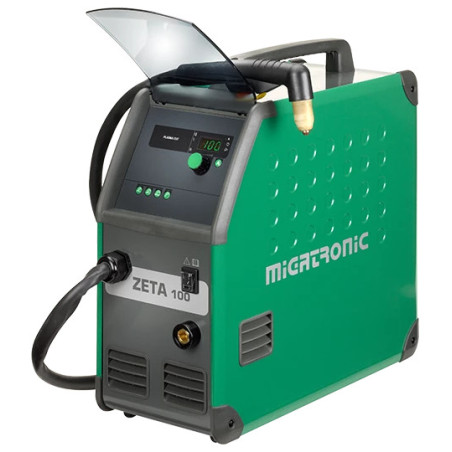

Migatronic Zeta 100 Plasma Cutter

Discover the Migatronic Zeta 100 plasma cutter, which utilizes the latest inverter technology for fast and precise cuts on all conductive metals and alloys. An ideal choice for both workshop and on-site applications, the Zeta 100 is suitable for manual and automated cutting processes. Its energy-efficient standby feature optimizes operational costs while ensuring economical performance.

The plasma cutter easily connects to an existing compressed air system, making it ready for work in no time. The user-friendly control panel allows easy adjustment of the current according to the plate thickness, enabling the Zeta 100 to cut plates up to 25 mm thick. The machine is also ideal for fine root cutting, allowing for quick repair of welding defects.

The Zeta 100's automatic arc generation system (pilot arc) provides touchless ignition, extending the lifespan of consumable parts. Cutting perforated or punched plates is also effortless, thanks to advanced technology. Experience a new level of plasma cutting with the Migatronic Zeta 100—request a quote today!

Key Features:

• Cutting thickness: Up to 25 mm with quality cuts.
• Cutting speed: Fast and efficient.
• Portable: Ideal for on-site work.
• Cost-effective operation: Energy-saving standby function.
• Fine root cutting: For repairing weld seams.

Zeta 100 Specifications:

• Adjustment range: 20 A/88 V - 100 A/120 V
• Voltage tolerance: ± 15 % 3 × 400 V
• Circuit breaker: Type C, 20 A
• Duty cycle at 100 % / 40 °C: 75 A / 110 V
• Duty cycle at 60 % / 40 °C: 85 A / 114 V
• Duty cycle max. / 40 °C: 100 A / 40 % / 120 V
• Efficiency: 80 %
• No-load voltage: 248 V
• Quality cutting (Plasma): < 25 mm
• Protection class: IP 23
• Standard: EN/IEC 60974 -1. -10.
• Dimensions (L × W × H): 405 mm × 345 mm × 675 mm
• Weight: 36 kg
